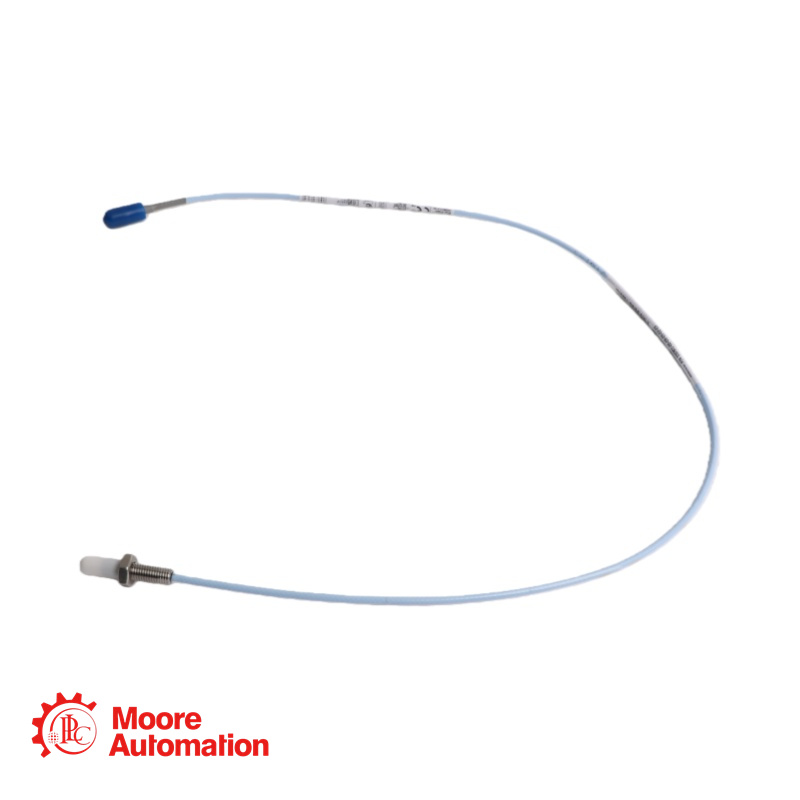

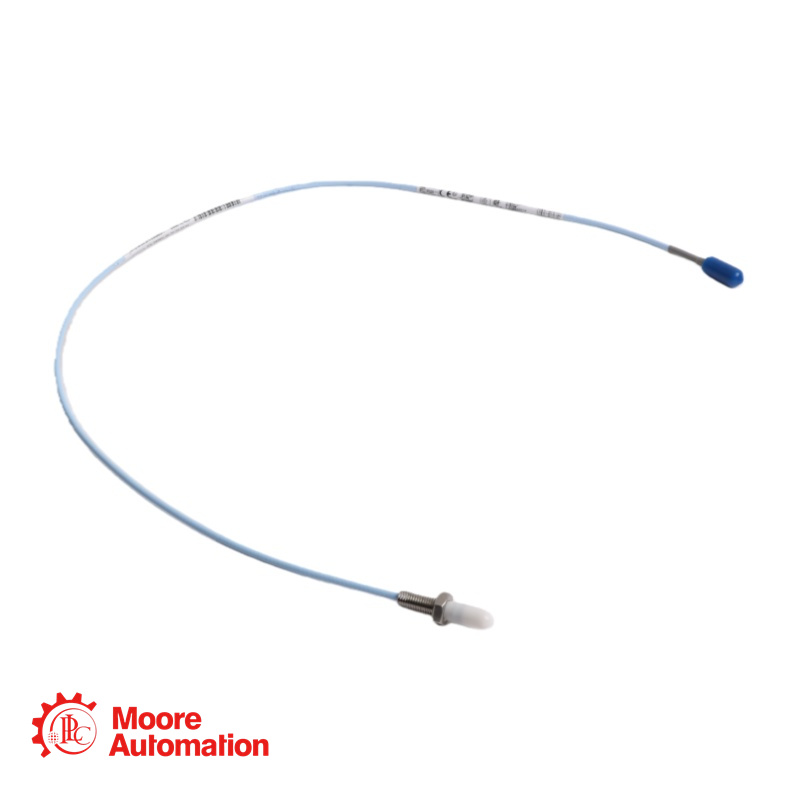

3300 NSv Probe, 1/4-28 UNF thread, without armor
Marque :
Bently NevadaNuméro d'article :
330901-00-08-05-11-05Lester :
0.05 kgDimension :
1.2x1x117cmPays d'origine :
USACode SH :
8537101190La description :
3300 NSv Probe
Brand
Bently Nevada
Part number
330901-00-08-05-11-05
Origin
USA
Description
3300 NSv Probe
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Description of 330901-00-08-05-11-05
The 3300 XL NSv Proximity Transducer System is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The system consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor Sensor
Primary uses are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
Parameter
00 Untreaded Length: 0.0 inches (minimum)
08 Overall Case Length: 0.8 inches (minimum case length)
05 Total Length: 5.0 meters (16.4 feet)
11 Connector & Cable Type: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
EE 05 Agency Approval: Multiple Approvals
Cable Specification:75 Ω coaxial, FEP insulated
Tensile Strength (max rated):220 N (50 lb)
Average Scale Factor:7.87 V/mm (200 mV/mil)
Linear Range:1.5 mm (60 mils) from 0.25 to 1.75 mm
Recommended Gap:1.0 mm (40 mils)
Incremental Scale Factor (ISF):7.87 V/mm +12.5%/-20% including interchangeability
FAQ
What is the Average Scale Factor of the 3300 XL NSv system?
A: 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers.
What is the linear range?
A: 1.5 mm (60 mils). Linear range begins at approximately 0.25 mm (10 mils) from target and is from 0.25 to 1.75 mm (10 to 70 mils) (approximately -1 to -13 Vdc). Recommended gap setting is 1.0 mm (40 mils).
Benefits
The product offers a number of benefits, including:
· Wide input voltage range
· High output current
· Overvoltage protection
· Undervoltage protection
· Short-circuit protection
· Safety approvals
· Compact and lightweight design
