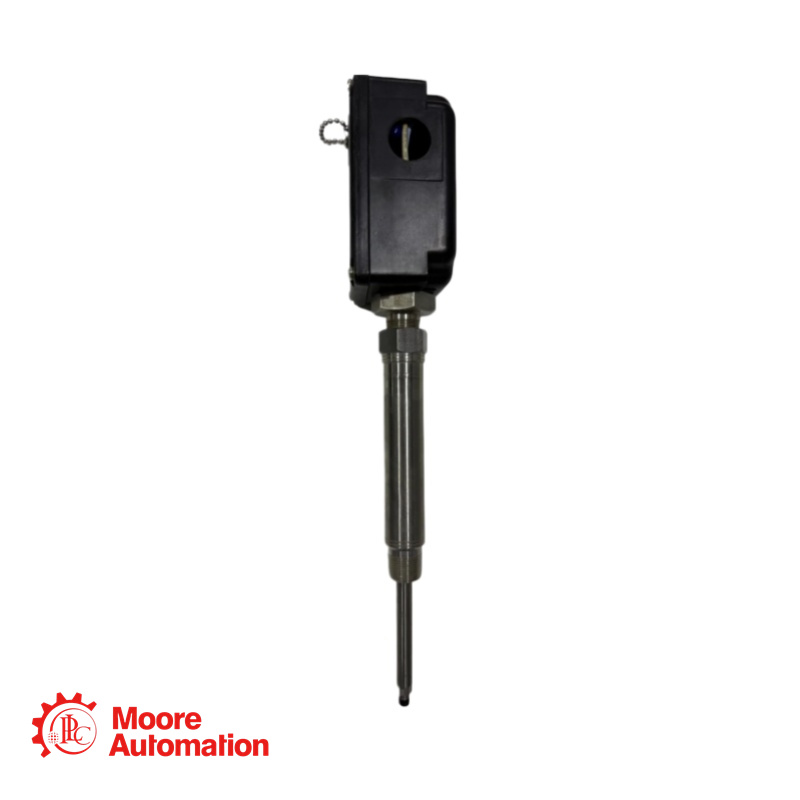

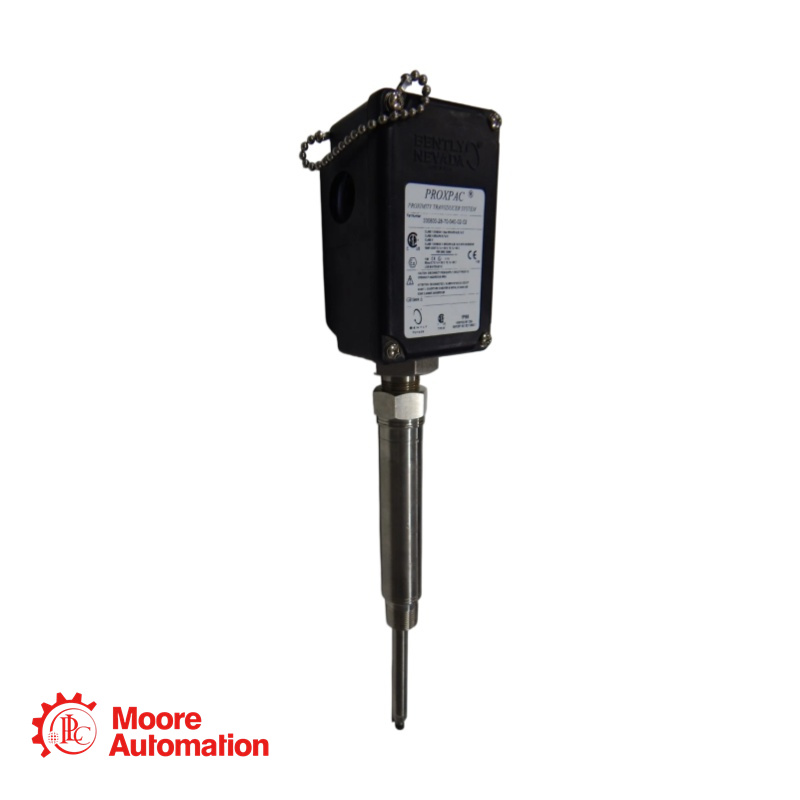

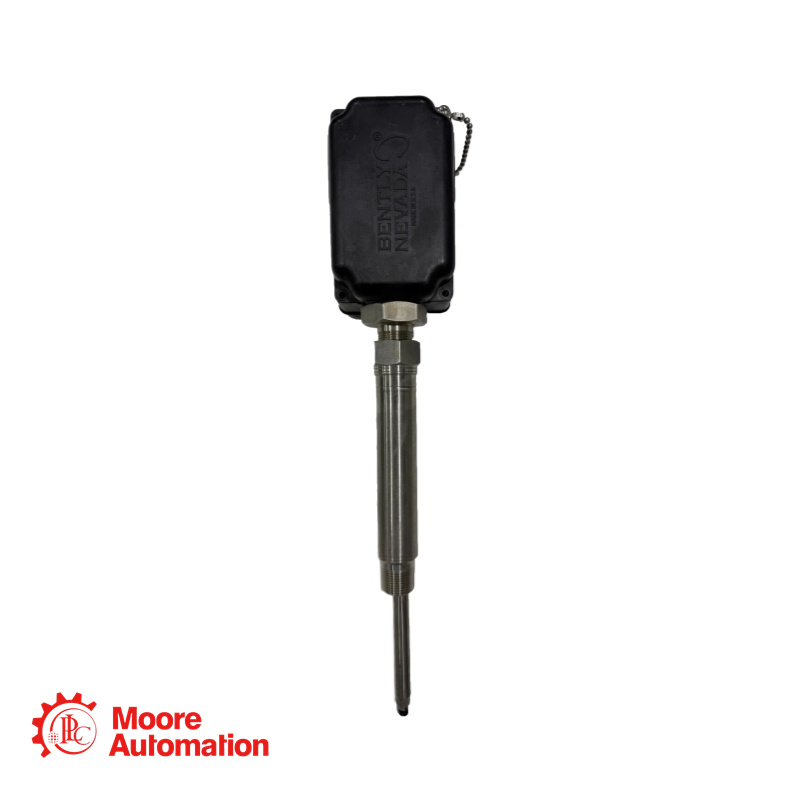

Bently Nevada 330801-28-04-105-00-02 Proximity Transducer Assembly
Marque :
Bently NevadaNuméro d'article :
330801-28-04-105-00-02Lester :
0.1 kgDimension :
1.4x1.2x116cmPays d'origine :
USACode SH :
8537101190La description :
Proximity Transducer Assembly
>>>Inquire 330801-28-04-105-00-02
Email: sales5@mooreplc.com
Phone/ Whatsapp: +86 15359408275
>>>330801-28-04-105-00-02
Part Number: 330801-28-04-105-00-02
Product:3300 XL 8 mm Proximity Probe (Standard forward mount)
Option Code
Selection
Description
AA (Probe & Approvals)
28
3300 XL 8 mm probe with Multiple Approvals
BB (Standoff Adapter)
04
40 mm (Minimum 40 mm, max 200 mm, increments of 10 mm)
CCC (Probe Penetration)
105
105 mm (Minimum 25 mm, max 760 mm, increments of 1 mm)
DD (Fittings)
00
No fittings; two plugs and two washers
EE (Mounting Thread)
02
3/4-14 NPT (Required if ordering Standoff Adapter)
>>>Specification - 330801-28-04-105-00-02
Probe Type:3300 XL 8 mm probe with 1-meter cable
Probe Tip Material:Polyphenylene Sulfide (PPS)
Probe Case Material:AISI 304 stainless steel
Linear Range:2 mm (80 mils) from ~0.25 mm to 2.3 mm (~ -1 Vdc to -17 Vdc)
Recommended Gap :1.27 mm (50 mils)
Incremental Scale Factor:(ISF) 7.87 V/mm (200 mV/mil) ±5%
Frequency Response:0 to 10 kHz (+0, -3 dB) with up to 305 m field wiring
Power Required:-17.5 Vdc to -26 Vdc (without barriers), -23 Vdc to -26 Vdc (with barriers)
Output Resistance:50 Ω
>>> FAQ - 330801-28-04-105-00-02
1. What is the PROXPAC XL Proximity Transducer Assembly?
The PROXPAC XL is a self-contained proximity probe system that integrates the 3300 XL Proximitor sensor inside the housing cover. This eliminates the need for a separate Proximitor housing and an extension cable between the probe and sensor. Field wiring connects directly from the monitor to the assembly.
2. Does this assembly (330801-28-04-105-00-02) include the probe?
Yes. Option code 28 (AA) specifies a 3300 XL 8 mm probe with Multiple Approvals and a 1-meter integrated cable.
3. Can I use this assembly with my existing 3/4" NPT mounting hole?
Yes. Option EE = 02 specifies 3/4-14 NPT mounting thread, which is required when ordering a standoff adapter.
|
