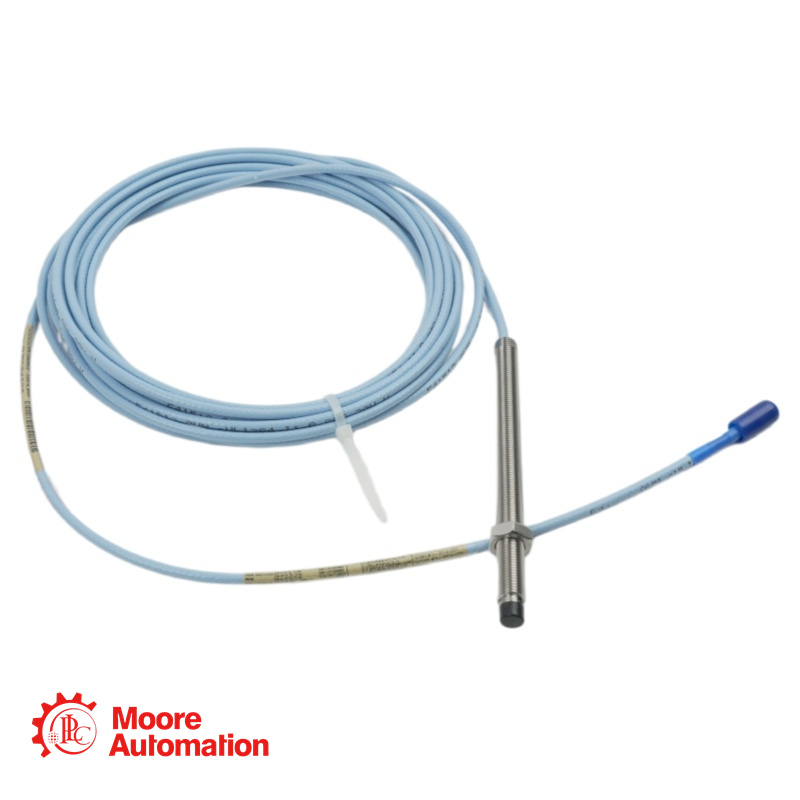

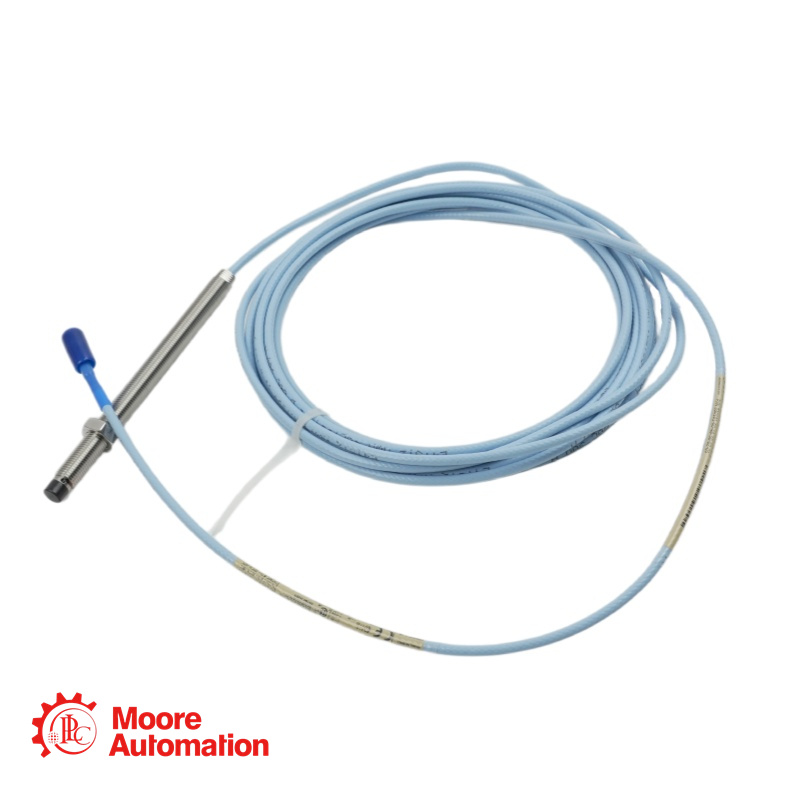

The Bently Nevada 330101-00-43-20-02-05 is a 3300 XL 5 mm proximity probe.
Marque :
Bently NevadaNuméro d'article :
330101-00-43-20-02-05Lester :
0.1 kgDimension :
2.6x2.3x123cmPays d'origine :
USACode SH :
8537101190La description :
Proximity Probe
330101-00-43-20-02-05
The Bently Nevada 330101-00-43-20-02-05 is a 3300 XL 5 mm proximity probe, an eddy current sensor that measures displacement and vibration of rotating machinery shafts without physical contact. The 5 mm diameter is specifically designed for applications where space constraints prevent the use of larger 8 mm probes.
Technical Specifications for 330101-00-43-20-02-05
|
Unthreaded Length |
0:No unthreaded section (0 mm) |
|
Case Length |
43:4.3 inches (109.2 mm) threaded case length |
|
Total Cable Length |
20:2.0 meters (6.6 feet) |
|
Connector/Cable Type |
2:Miniature coaxial ClickLoc™ connector (standard) |
|
Agency Approvals |
5:Multiple industrial certifications (CE, RoHS, etc.) |
|
Series |
3300 XL |
|
Probe Diameter |
5 mm (0.2 in) |
|
Tip Material |
PPS (Polyphenylene sulfide) |
|
Frequency Response |
DC to 10 kHz (-3dB) |
|
Cable Pull Strength |
≥330 N (75 lbf) with CableLoc |
FAQ about 330101-00-43-20-02-05
What is the difference between 330101 and other 3300 XL probes?
The 3301 prefix indicates a 5 mm probe with 1/4-28 UNF thread. Other prefixes:
330101 – 5 mm probe
330103 – 5 mm probe (metric thread)
330104 – 8 mm probe
330106 – 8 mm probe (reverse mount)
330707 – 11 mm probe
What is the linear measurement range of this 5 mm probe?
The 5 mm probe provides a linear range of approximately 0.25 mm to 2.0 mm (10 to 80 mils) gap . The typical operating gap is 1.0-1.5 mm (40-60 mils).
Is this probe backward compatible with older 3300 series systems?
Yes. 3300 XL components are both electrically and physically interchangeable with non-XL 3300 series 5 mm and 8 mm components. However, when XL and non-XL components are mixed, system performance is limited to non-XL specifications
|
