Marque :
Bently NevadaNuméro d'article :
32000-28-10-00-430-02-02Lester :
1.5 kgDimension :
37x9x8cmPays d'origine :
USACode SH :
8537101190La description :
Proximity Probe Housing Assembly
To receive a quote, contact below: Frida
Phone/Whatsapp: +86 15359408275 Email:sales5@mooreplc.com

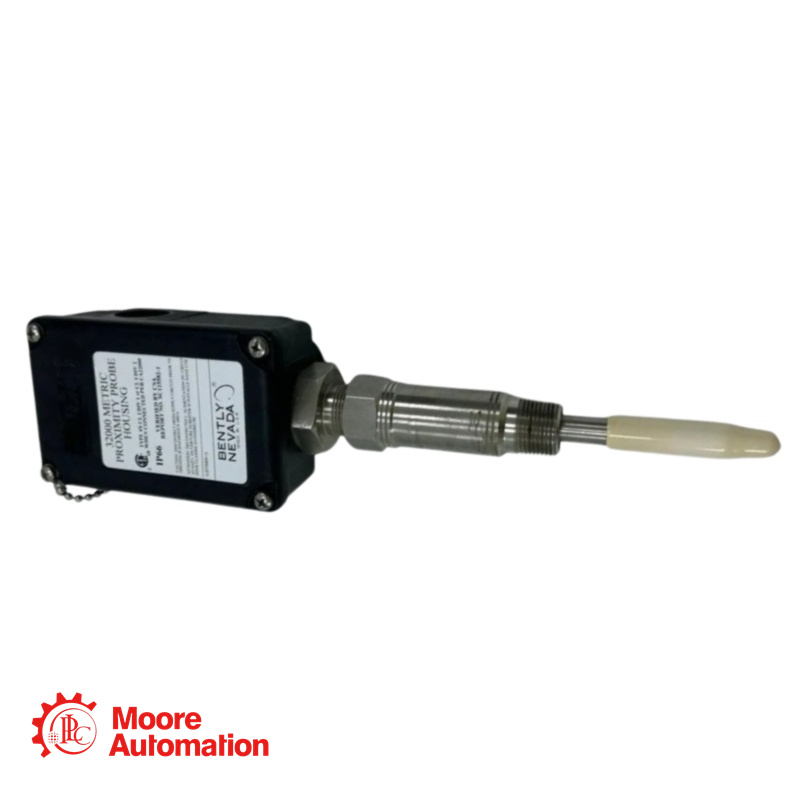

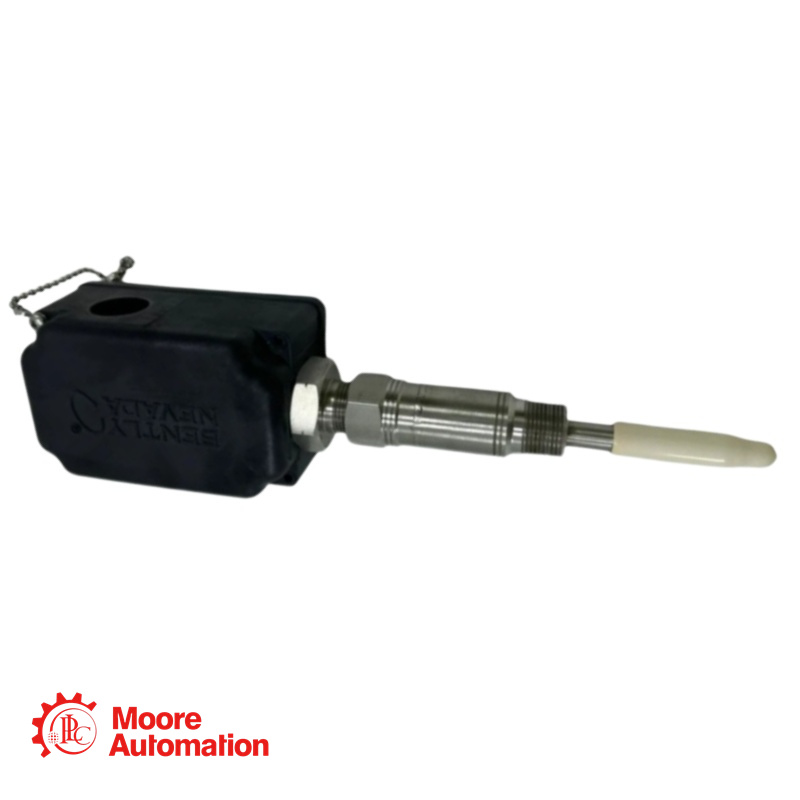

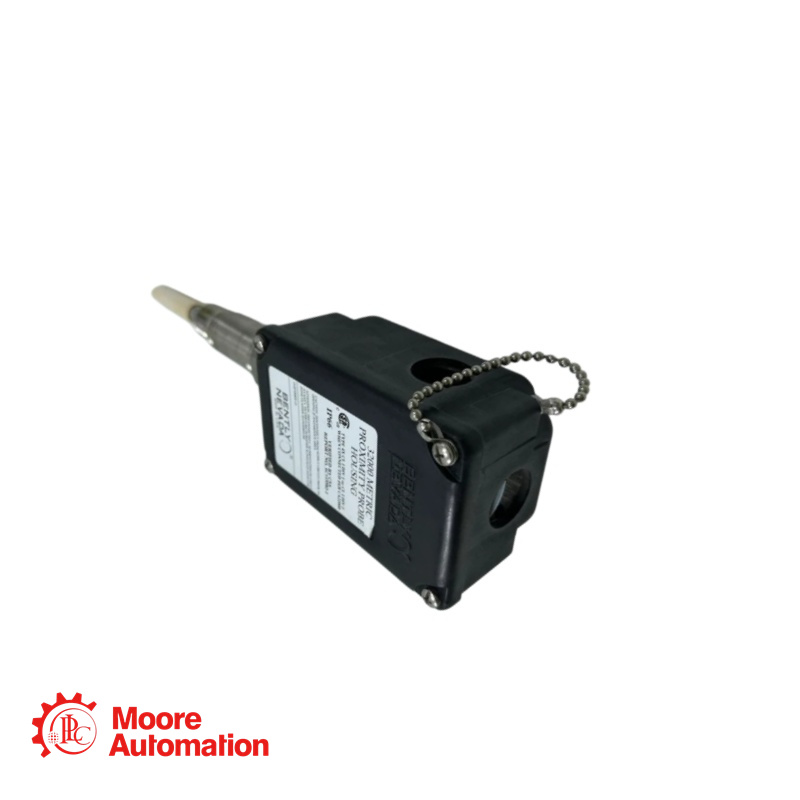

Proximity Probe Housing Assembly
32000-28-10-00-430-02-02:
This is a 32000 Proximity Probe Housing Assembly manufactured by Bently Nevada (Baker Hughes). It includes a pre-installed 3300 XL 8 mm proximity probe with a 1.0-meter cable. The assembly is constructed from Polyphenylene Sulfide (PPS) thermoplastic with stainless steel components (AISI 303/304).
Parameters - 32000-28-10-00-430-02-02
Option Code
Selection
Description
32000
—
Metric Proximity Probe Housing Assembly
AA
28
Probe with Connector: 3300 XL 8 mm probe, multiple approvals
BB
10
Probe Cable Length: 1.0 meter (39 in)
CC
0
Standoff Adapter Length: None (No standoff adapter)
DDD
430
Probe Penetration Option: 430 mm (Probe sleeve length)
EE
2
Fittings: Two 3/4-14 NPT fittings, one plug
FF
2
Mounting Thread Option: 3/4-14 NPT
Probe Cable Length:1.0 meter
Probe Penetration (Sleeve Length):75 mm
Mounting Thread:3/4-14 NPT (Outer Sleeve Thread)
Housing Material:Glass-reinforced Polyphenylene Sulfide (PPS)
Sleeve Material:AISI 304 Stainless Steel
Application Areas - 32000-28-10-00-430-02-02
Radial Vibration Monitoring: Steam turbines, gas turbines, centrifugal compressors, pumps, and generators.
Keyphasor (Phase Reference/Speed) Measurement
Industry Compliance & Environment: Machinery Protection Systems in the Oil & Gas, Petrochemical, and Power Generation industries.
Important Cautions - 32000-28-10-00-430-02-02
Pressure Sealing: The housing seals against directed water (IP66) but is not designed to resist internal or external pressure.
Sleeve Support: For "C" + "D" dimensions greater than 305 mm (12 in), additional sleeve support is required to prevent resonance. In this model (CC=00, DDD=075), the total is 75 mm, so no additional support is required.
Five-Star Premium Service
Significantly reduce your operational and support costs
Guaranteed long-term supply of high-quality automation spare parts
Rapid response within 24 hours — always on time, every time
Fast, secure, and globally reliable delivery
100% tested and certified quality assurance
Competitive pricing with exceptional value
Decades of industry expertise backed by a trusted global reputation
Warehouse: Xiamen
Lead Time: 1–3 days to arrive our warehouse / 1 week to arrive your place
Shipping: DHL / FedEx / UPS
